EHC1508 Door Mounted 180W/K Outdoor Enclosure Air Conditioner With Heat Exchanger

TIANJIN ESTEL ELECTRONIC SCIENCE AND TECHNOLOGY CO., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

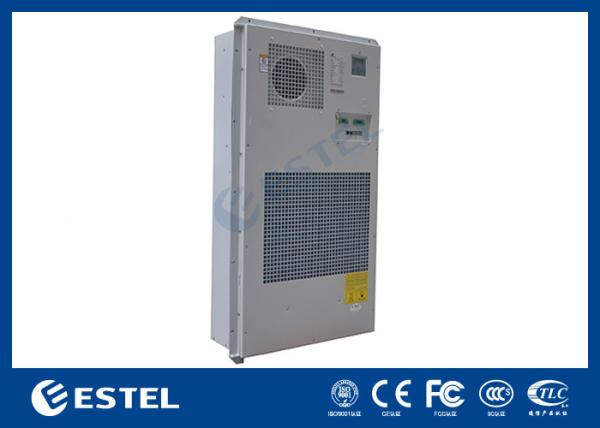

EHC1508 Door Mounted 180W/K Outdoor Enclosure Air Conditioner With Heat Exchanger

  • 1
  • 2

Brand Name : ESTEL

Model Number : EHC1508

Certification : ISO9001, CE, 3C, FCC, TLC

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 16,000 sets per month

Delivery Time : 7-10 working days

Packaging Details : carton + foam + wooden case

Mounting Method : Door Mounted

Application : Outdoor

Installation Mode : door mounted

IP grade : IP55

Dimension : WDH: 1001×561×200mm

Weight : 42kgs

Cooling Capacity : 1500W

Heat Exchanger : 180W/K

Heating Capacity : Optional

Contact Now

EHC1508 Door Mounted 180W/K For Outdoor Enclosure Air Conditioner With Heat Exchanger

1, EHC1508 Door Mounted 180W/K Heat Exchanger Features:

  • Remote measuring, remote communication, remote control, which can realize multiple au-tomatic protection and comprehensive self-testing function;
  • Strict process control and famous brand components to ensure high quality and reliability of this product;
  • Multiple self-protection design , RS485 communication port (MODBUS-RTU protocol);
  • Power supply voltage range;
  • LED display, all the settings can changed at the field;
  • Strict process control and international brand parts deployed to ensure high quality and product;
  • Dry contact alarm output, NO/NC optional;
  • Anti-theft design, without the protection cover.

2, Outdoor Enclosure Air Conditioner With Heat Exchanger Datasheet:

Parameter Model EHC1508
Dimensions, Weight & Mount
External Dimensions (H x W x D) mm 945×505×200
External Dimensions (H x W x D) With Flange mm 1001×561×200
Weight kg 42
Mounting Method Door Mounted
Application Outdoor
Environmental Protection & Performance
Working Temperature Range ºC -40 to +55
Noise Level dB(A) 65
IP Protection Level IP 55
Refrigerant R134a
RoHS Compliant Yes
Cooling/Heating Capacity
Cooling Capacity@L35/L35 W 1500
Heat Exchanger W/K 75
Heating Capacity (Optional) W
Power Consumption
AC Power Consumption@L35/L35 W 510
DC Power Consumption@L35/L35 W 200
AC Current@L35/L35 A 2.40
DC Current@L35/L35 A 4.30
Airflow
Internal Airflow m3/h 400
Power Supply
Power Supply range -38~-58VDC, 220VAC ± 15%
Rated operating voltage - Controller VDC -48
Rated operating voltage - Fans VDC -48
Rated operating voltage - Compressor VAC 220, 50/60Hz
Max. Current AC A 4.0
Max. Current DC A 4.3
Key Components
Controller ESTEL
Fans Telecom Level
Compressor Telecom Level
Heater

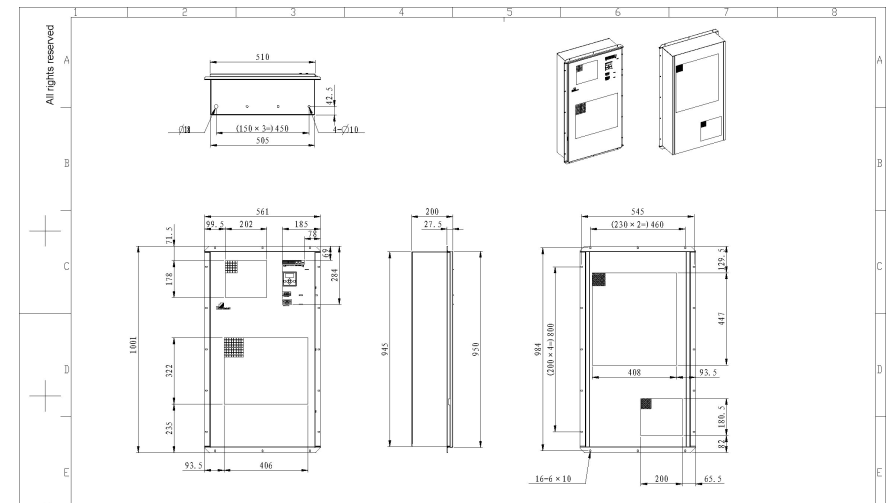

3, Outdoor Enclosure Air Conditioner With Heat Exchanger Dimensions:

EHC1508 Door Mounted 180W/K Outdoor Enclosure Air Conditioner With Heat Exchanger

EHC1508 Door Mounted 180W/K Outdoor Enclosure Air Conditioner With Heat Exchanger

4, Door Mounted Air Conditioner With Heat Exchanger Introduction:

The EHC1508 is a compact, high efficient combo air conditioner. The design is
optimized for applications with limited space available, but where functionality and
performance still cannot be compromised
220VAC for air conditioner, -48VDC for heat exchanger
1500W cooling capacity@L35/L35
75W/k heat exchanger

Compact design
Door mounted – easy integration in outdoor cabinets and enclosures
Wide working temperature range: -40ºC to +55 ºC w/heater


Product Tags:

Outdoor Enclosure Air Conditioner



Door Mounted Enclosure Air Conditioner



Enclosure Air Conditioner With Heat Exchanger
