Door Mounted 100W/K ISO9001 Enclosure Heat Exchanger

Name: Door Mounted 100WK ISO9001 Enclosure Heat Exchanger
Brand: ESTEL
Price: 1 USD

Door Mounted 100W/K ISO9001 Enclosure Heat Exchanger Manufactures

Brand Name : ESTEL

Model Number : HE06-100SEH/01

Certification : ISO9001, CE, 3C, FCC, TLC

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 16,000 sets per month

Delivery Time : 7-10 working days

Packaging Details : carton + foam + wooden case

Rated Input Power : 100W

Rated Input Current : 2.1A

Installation Mode : door mounted

Protection Level : IP55

Dimension : W×D×H: 430×176×700 mm

Cover Material : galvanized steel

Weight : 18kg

heating capacity : 300/500W (optional)

Contact Now

Door Mounted Embedded Cabinet Industrial Air To Air Heat Exchanger High Pressure Compact DC Series 100W/K HEX

1. Specifications

Technical Parameters

Model No.		HE06-100SEH/01
Environmental Performance	working environmental temperature	-20°C ~ 55°C
	storage working temperature	-40°C ~ 70°C
	working humidity	≤95%
Thermal Performance	rated heat exchange capacity	100W/K
Thermal Performance	rated heating capacity	300/500W (optional)
Electrical Performance	rated input current	2.1A
	rated input power	100W
	rated input voltage	DC48V
Noise	62dB
IP Grade	IP55
Weight	18kg

Dimension Diagram: 430×176×700 mm (W×D×H)

Door Mounted 100W/K ISO9001 Enclosure Heat Exchanger

Size

Specs

Model

100W/K

HE06-100SEH/01

300

401

450

600

672

700

133

176

649

379

430

2. Application

The product is widely applied in outdoor telecom cabinet, outdoor base station cabinet, telecom transmission cabinet, outdoor battery cabinet, 4G network cabinet, etc

3. Description

The HE06-100SEH/01 Heat Exchanger is a full automation temperature control product. It uses intelligent controller to control the whole system of the heat exchanger. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data. It can store 100 event records and 1280 historical data records, and can enquire 256 days’ daily record information. The product is widely applied in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, outdoor advertising machine, bank ATM banknote exchange room etc.

4. Features

High intelligence
High precision
The heat exchange capacity can be set according to need
Reliable: 48V DC power supply, works well even when AC power fails
Anti Corrosion protection: Powder coated sheet metal endures harsh environment
Easy maintenance
Low noise
Low energy consumption
Wide input voltage range: DC36 - 65V
With dry contact alarm output
Dust proof and water proof

5. System Principle Diagram

Door Mounted 100W/K ISO9001 Enclosure Heat Exchanger

6. Electrical Wiring Diagram

Wiring Ports:

0V -48V: power supply input (voltage input: DC36 - 65V)

A+ B- SGND: RS485 communication interface

AL1 AL2: general alarm output

F+ F- : auxiliary direct ventilation control output (output voltage: DC48V)

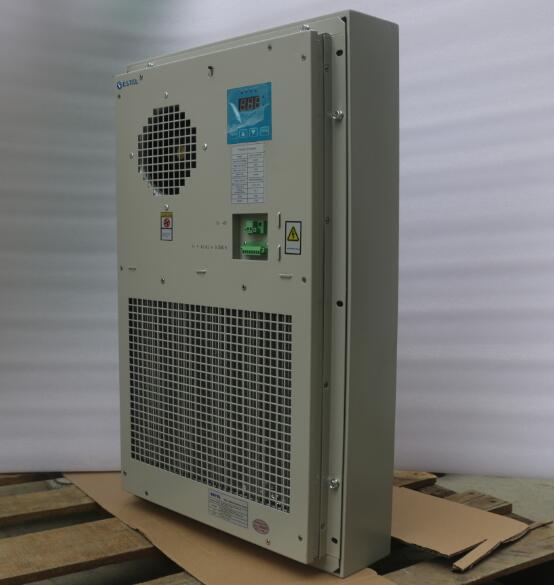

7 Cabinet Picture

Door Mounted 100W/K ISO9001 Enclosure Heat Exchanger

8. Packing
